Hot water tanks use water tank Fish S1 X

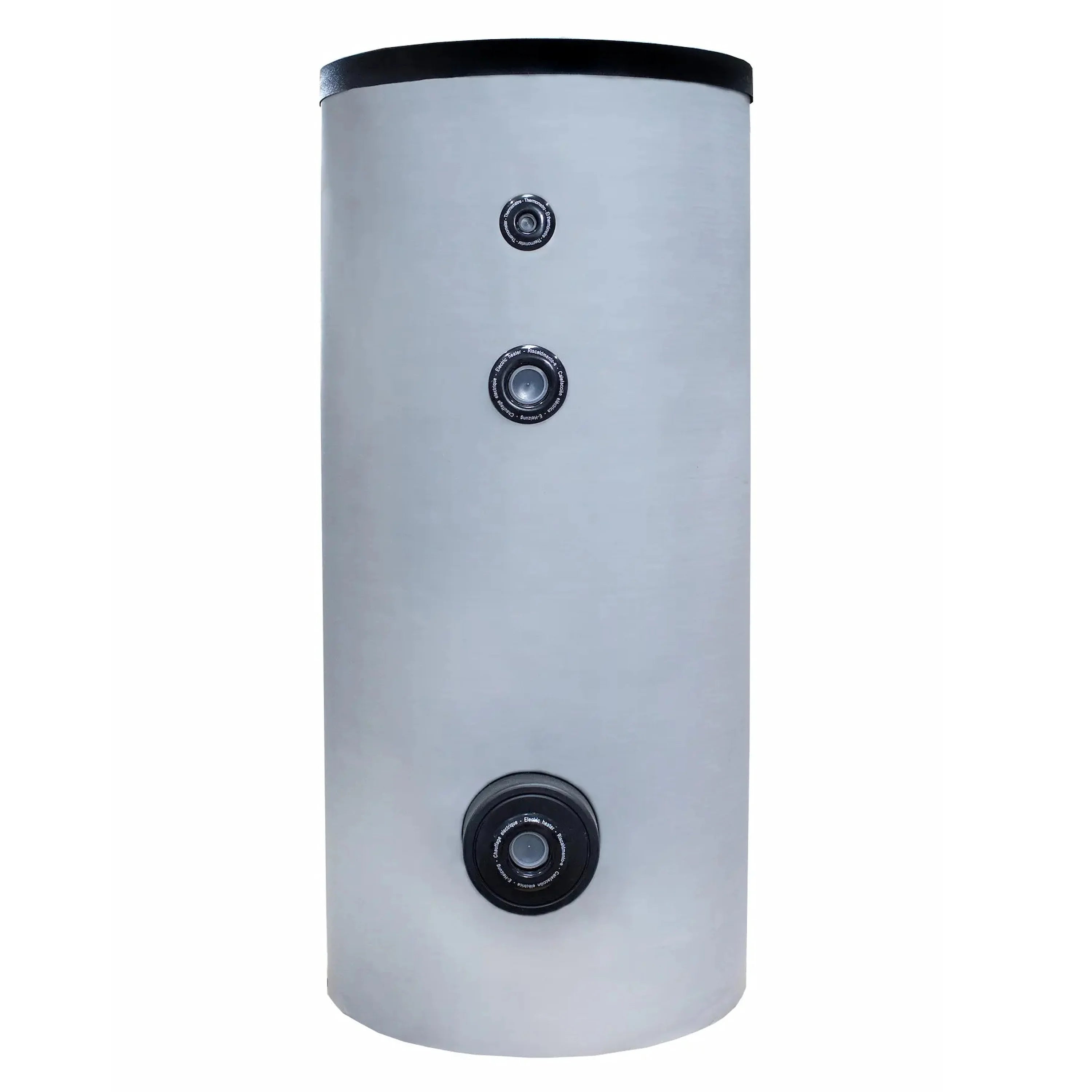

Domestic hot water storage tank Fish S1 X

Hot water tank in the upright version for domestic water preparation.

The hot water contact surface with the storage tank is protected against corrosion by a layer of high-quality enamel and magnesium anode*.
This ensures, in accordance with DIN 4753, that the process water only comes into contact with a hygienically clean surface.

The domestic water heating is carried out by a smooth tube water heat exchanger, which allows the connection of an external heat source such as z.B. Solar system, heat pump, boiler or optional electric heating element.

Thermal insulation & domestic hot water storage tank Fish S1 X

The thermal insulation in the storage tanks consists of a layer of CFC-free polyurethane rigid foam and a replaceable layer of PVC sheath.

Standard equipment of the hot water tank

• Inspection opening, thermometer, sleeve for electric heating element, magnesium anode*,
• internal heat exchanger.
• *A titanium anode can be used optionally.


Technical data

• Material: S235JR
• Welding: automatic welding
• Protection: high-quality enamel and protective anodes
• Maximum operating pressure of the storage tank: 10 bar
• Maximum test pressure: 15 bar
• Maximum operating temperature: 95ºC
• Insulation: 50 mm thick polyurethane foam
• Outer jacket: Grey color
• Heat exchanger: steel tube S235JR
• Inspection opening: ø122mm/ø180mm
• Technical structure of the Fish S1 X storage tank (Figure 2)
• High-quality enamel for reliable corrosion protection
• Efficient heat exchanger specifically designed for solar thermal systems
• Connection socket for the installation of a special UV-20 disinfection system
• Inspection opening for easy cleaning,
• Possibility of installing a heating element
• Polyurethane PUR foam insulation for excellent thermal insulation
• Magnesium protective anode for reliable corrosion protection

Download

• Data sheet Fish S1 X
