Screw-in heaters for efficient liquid heating

Screw-in heaters are an ideal solution for directly heating liquids. Their versatile applications extend to water heaters, solar systems, buffer storage tanks, and stainless steel tanks. Thanks to their sophisticated design and high-quality materials, they ensure reliable heating performance and a long service life.

Robust construction and high-quality materials

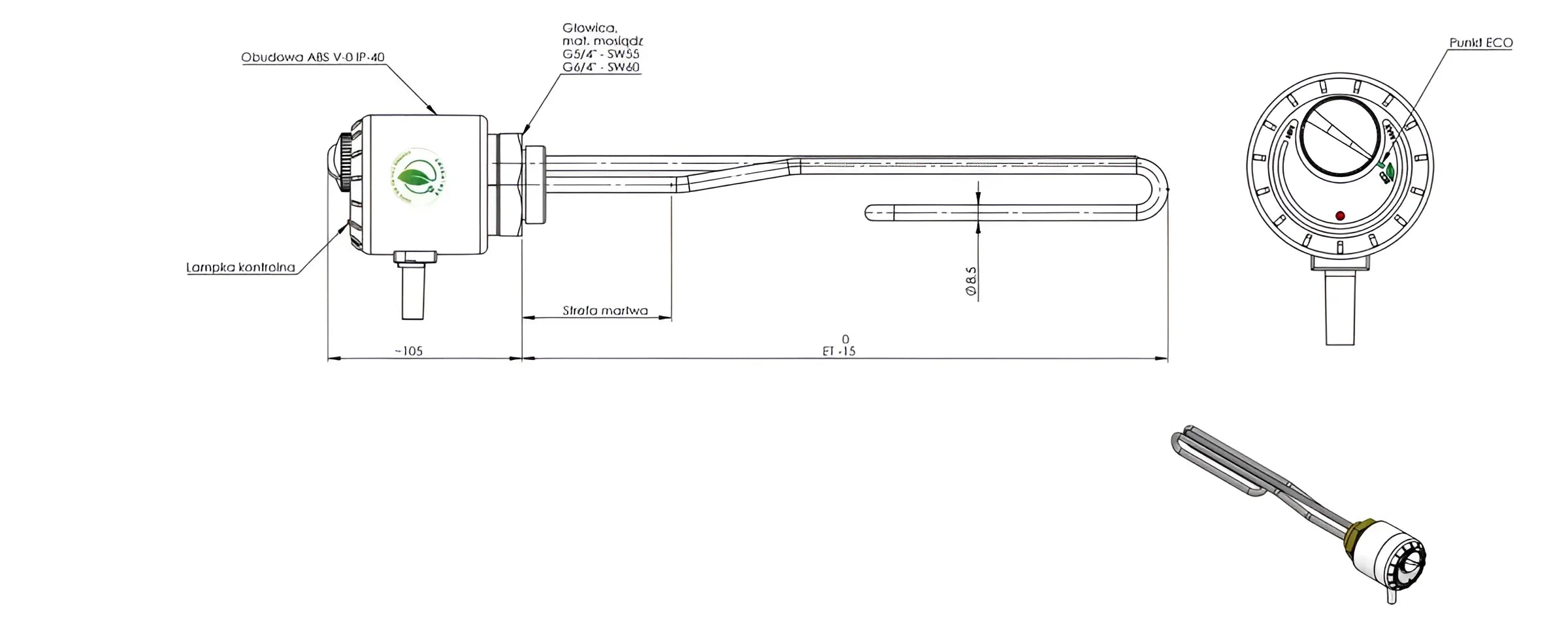

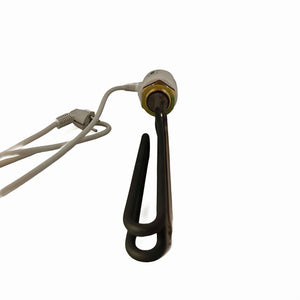

The screw-in heater consists of a robust tubular heating element mounted with a capillary sheath in a head with a 1 1/2" thread. This design ensures safe and easy installation. The heating element itself is made of Incoloy steel, which offers high resistance to corrosion and chemical influences. This makes the heater ideal for demanding applications and guarantees a long service life, even under intensive use.

Practical plastic housing with adjustable operating temperature

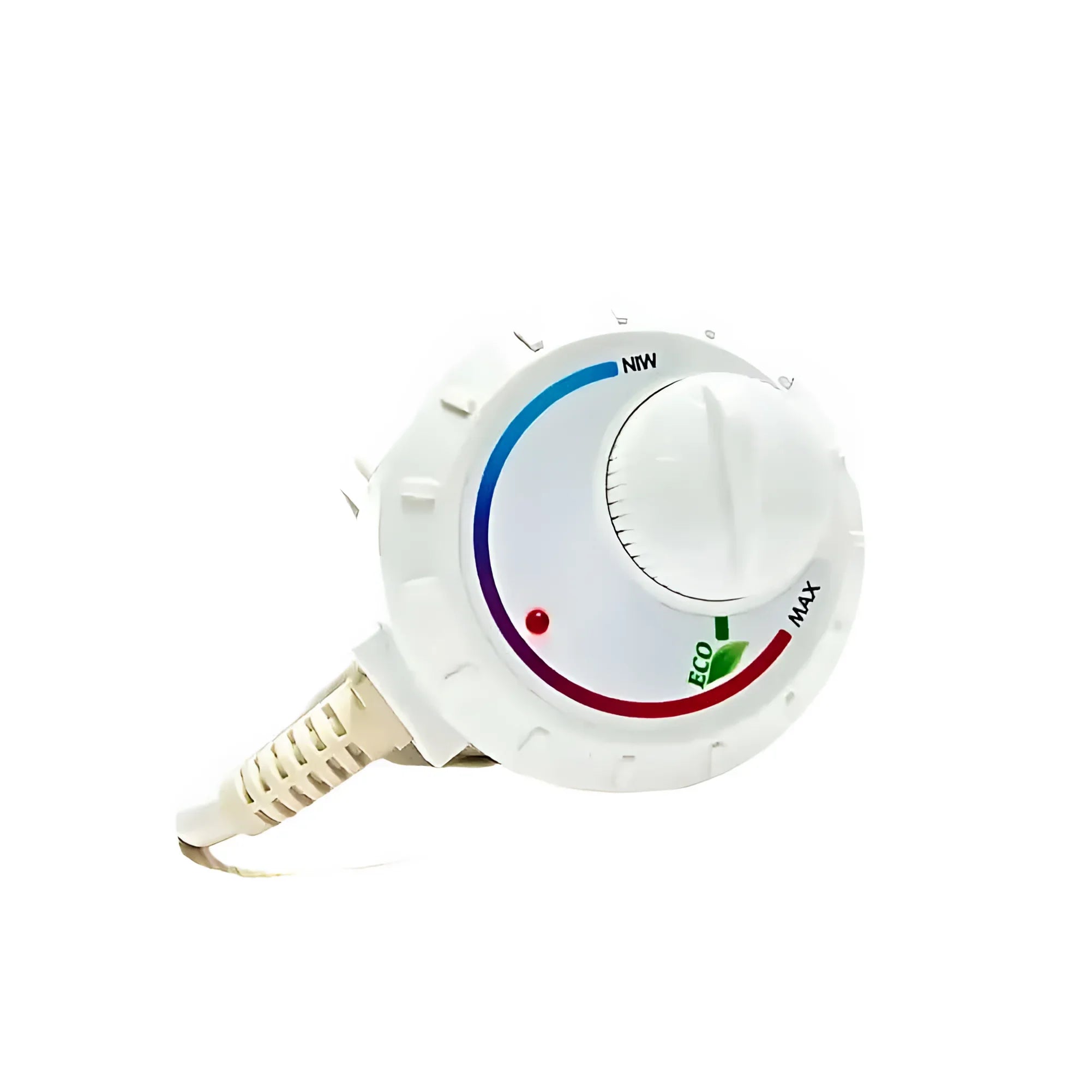

The screw-in heater features a robust plastic housing that's not only impact-resistant but also protects the electronics. Furthermore, the adjustable operating temperature from 5 to 70°C allows for precise temperature control. The innovative ECO-POINT function supports optimal temperature setting on the thermostat and ensures efficient energy consumption.

Innovative security features

Safety is paramount with this heater. It features a safety temperature limiter (STB) with a maximum temperature of 87°C. Additionally, an operating indicator light is integrated to indicate the current operating status. These safety features make it particularly reliable and user-friendly.

Easy handling thanks to integrated power cable

For quick and easy installation, the screw-in heater is equipped with a 1500 mm long power cable including a plug. This allows installation without the need for additional electrical components. This saves considerable time and increases ease of use.

Highest quality standards met

The screw-in heaters are manufactured according to the latest quality standards PN-EN 60335-1:2012 and LVD 2014/35/EU. This ensures not only high operational reliability but also compliance with all relevant European safety standards.

Versatile use in various applications

Thanks to their reliable heating performance and flexible installation options, these screw-in heaters are suitable for a wide range of applications. Typical applications include:

• Water heaters for private and commercial use.
• Solar systems that require an additional heat source.
• Buffer tanks and storage tanks for heating and domestic water.
• Stainless steel tanks in the food and chemical industries.

Their versatile application possibilities make them an excellent choice for the efficient heating of liquids in a wide range of applications.

Technical data

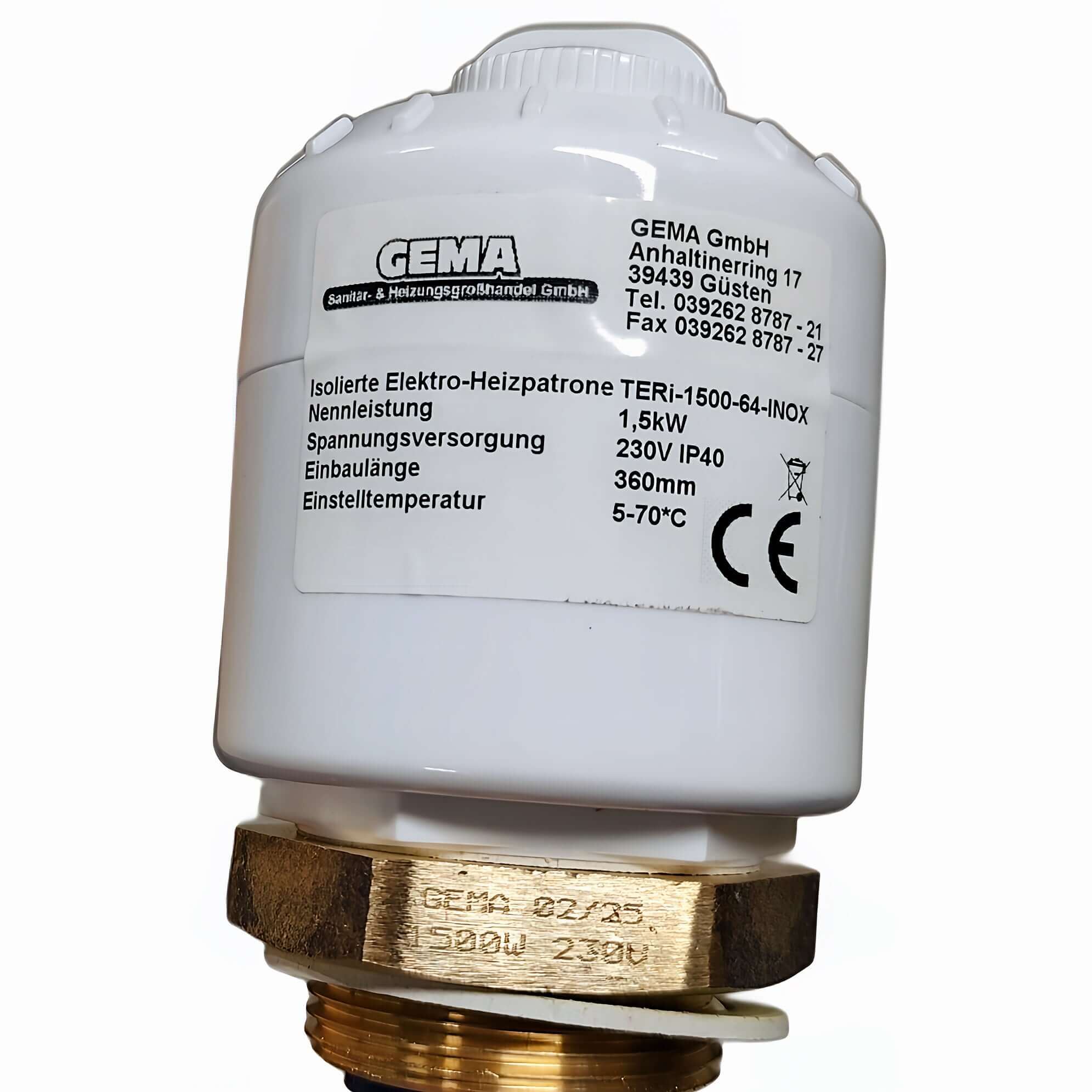

Technical data 1.5 kW

• Power of 1500 W
• Supply voltage 230 V
• Immersion length 360 mm
• unheated zone 80 mm
• Net weight 0.98 kg
• standardized 1 1/2" threaded connection

Technical data 2 kW

• Power of 2000 W,
• Supply voltage 230 V
• Immersion length 360 mm
• unheated zone 80 mm
• Net weight 1 kg
• standardized 1 1/2" threaded connection

Scope of delivery

• 1 x incoloy heating element with 1.5 m cable
• Assembly instructions
