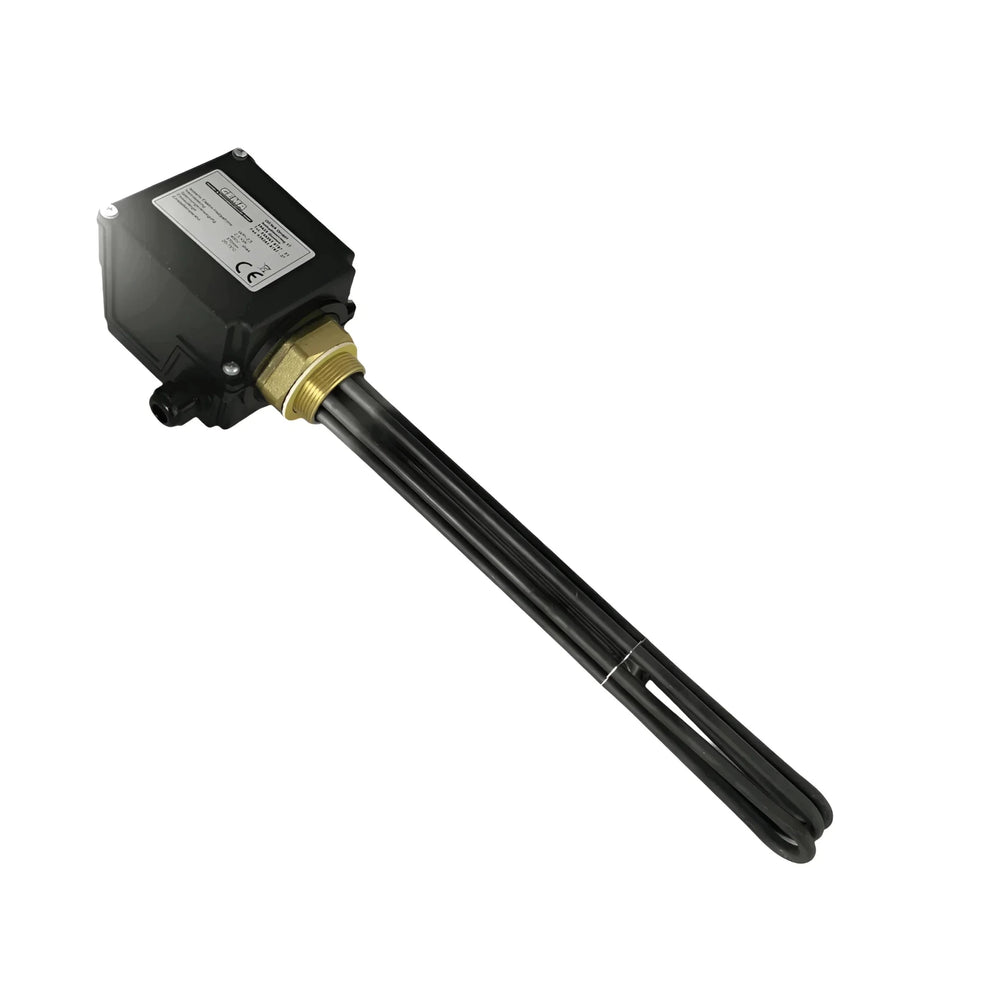

Electric heating element | heating rod | Heating cartridge I screw-in heater 3 kW AG 1 ½“

Heating element, heating cartridge 3 kW AG 1 1/2" emergency heating PV

Product overview

The 3 kW heating element It offers a reliable electric heating solution for various storage tanks. It is specifically designed for use in buffer storage tanks. Drinking water reservoirn and solar storage tanks as well as enamelled containers.

Thanks to its high-quality design, the electric heating element can be used continuously and ensures efficient heat distribution in a wide variety of applications.

Application areas

The screw-in radiator With a 1 1/2" male thread connection, it is ideally suited for installation in various storage tanks. It ensures even heating, quickly bringing water and other liquids to the desired temperature.

Especially in emergency situations or as a supplement to other heating systems, this heating cartridge represents a reliable solution that meets the requirements of modern heating systems.

Depending on the storage capacity, various power levels are available. The installation length and, if applicable, the table with suggested power levels based on storage capacity serve as a guide.

Technology

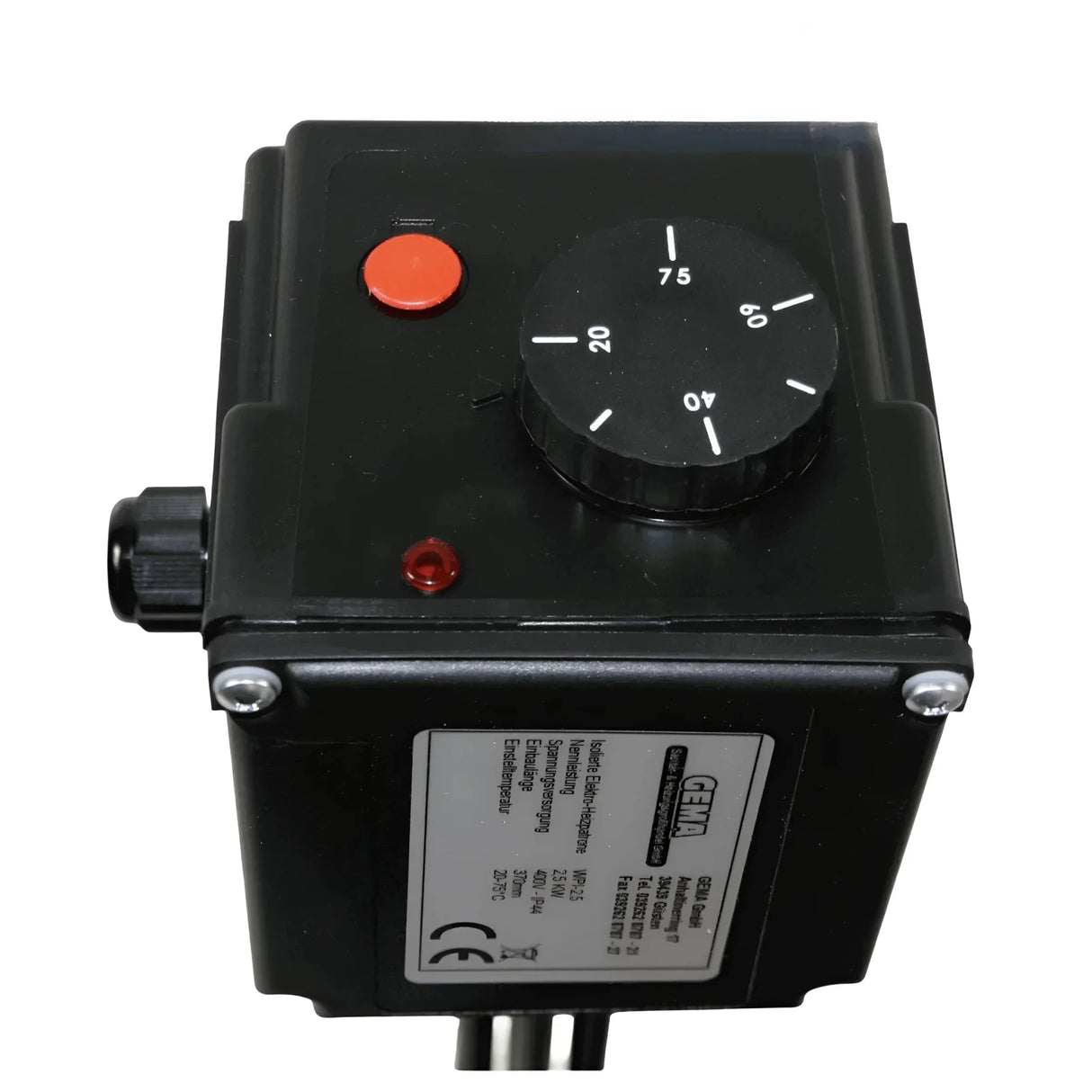

With a power output of 3000 W and an adjustable temperature range of 30 to 75 °C, the device offers precise control. The integrated safety thermostat is fixed at 98 °C to prevent overheating.

The maximum installation length is 390 mm, and the unheated zone measures approximately 120 mm from the sealing surface. This design guarantees effective and safe operation.

Safety and materials

The Heating element It features an insulating separation that prevents corrosion, thus significantly extending the device's service life. The pipe casing material 2.4858 (Incoloy825) ensures very good corrosion resistance.

Additional materials such as the brass screw head and the ABS plastic housing contribute to the product's stability and durability. The IP54 protection rating guarantees protection against dust and splashing water, ensuring safe operation.

Technical data

• Power: 3,000 watts

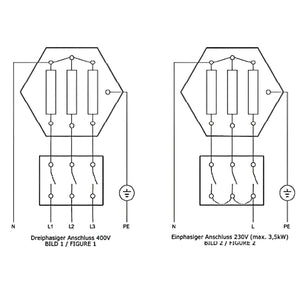

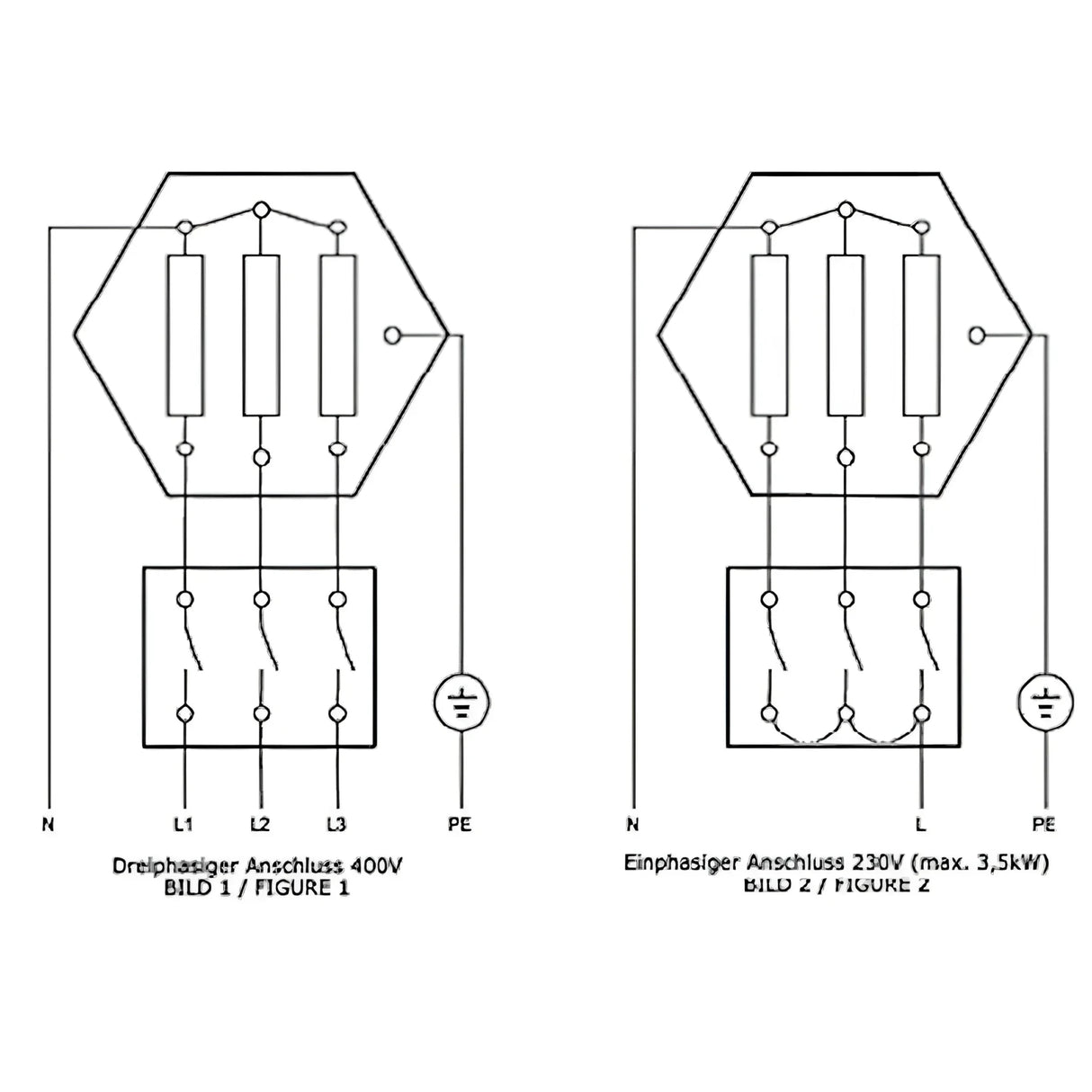

• Voltage: 230V/400V
• Application: enamelled containers
• Unheated length: 120 mm
• Installation length: 390 mm
• Protection rating: IP54
• Maximum operating pressure: 10 bar
• Temperature control: 30 - 75 °C
• Safety temperature limiter: 98 °C
• Connection: 1 1/2" AG

Scope of delivery

• 1 x heating element 3 kW
• 1 x flat gasket
• Assembly & User manual

Download

• Datasheet
• User manual
