MPM Wood Plus 10 kW wood gasifier – efficient solid fuel boiler 🔥🌲

MPM Wood Plus 10 kW – Powerful wood gasification boiler

Product overview

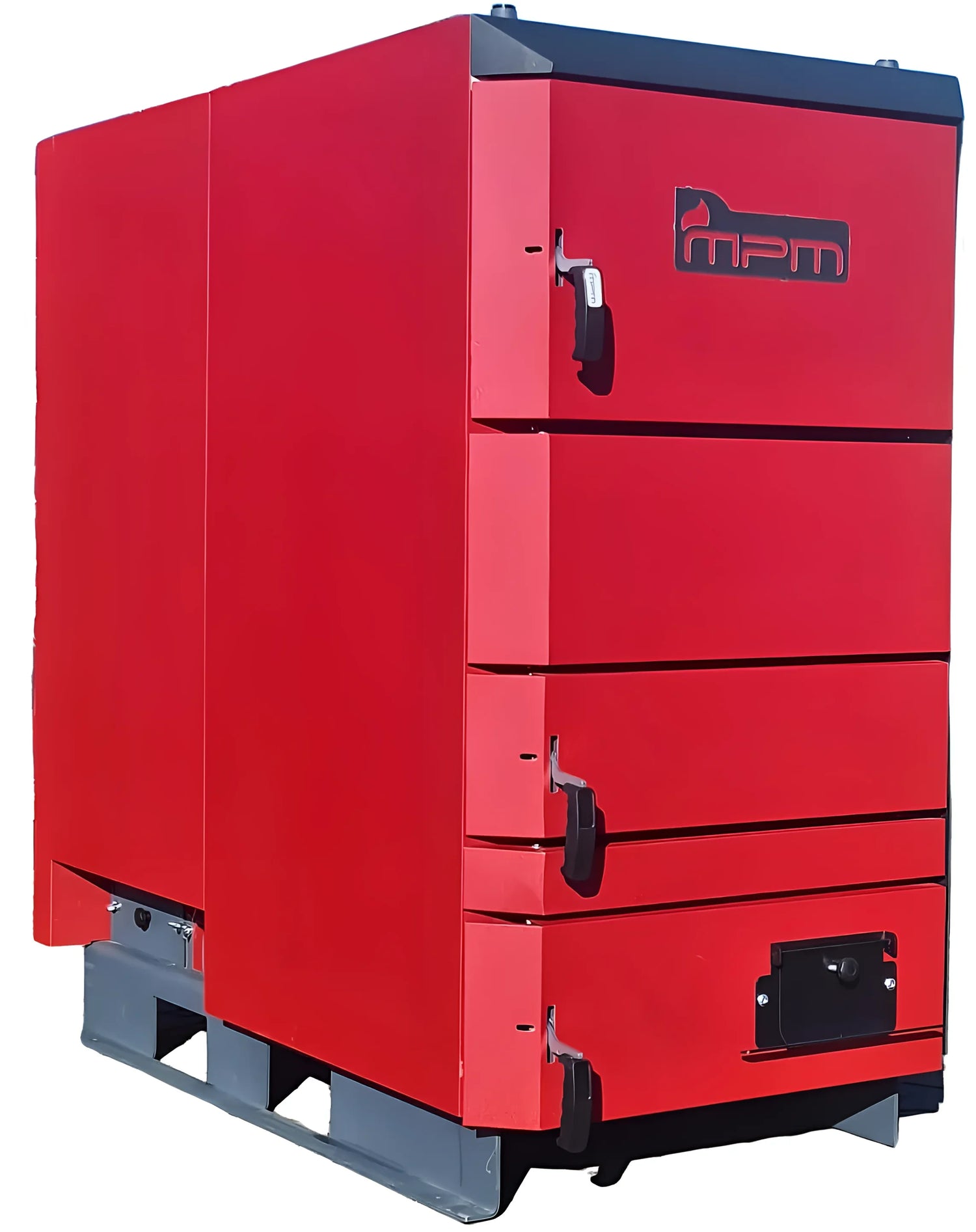

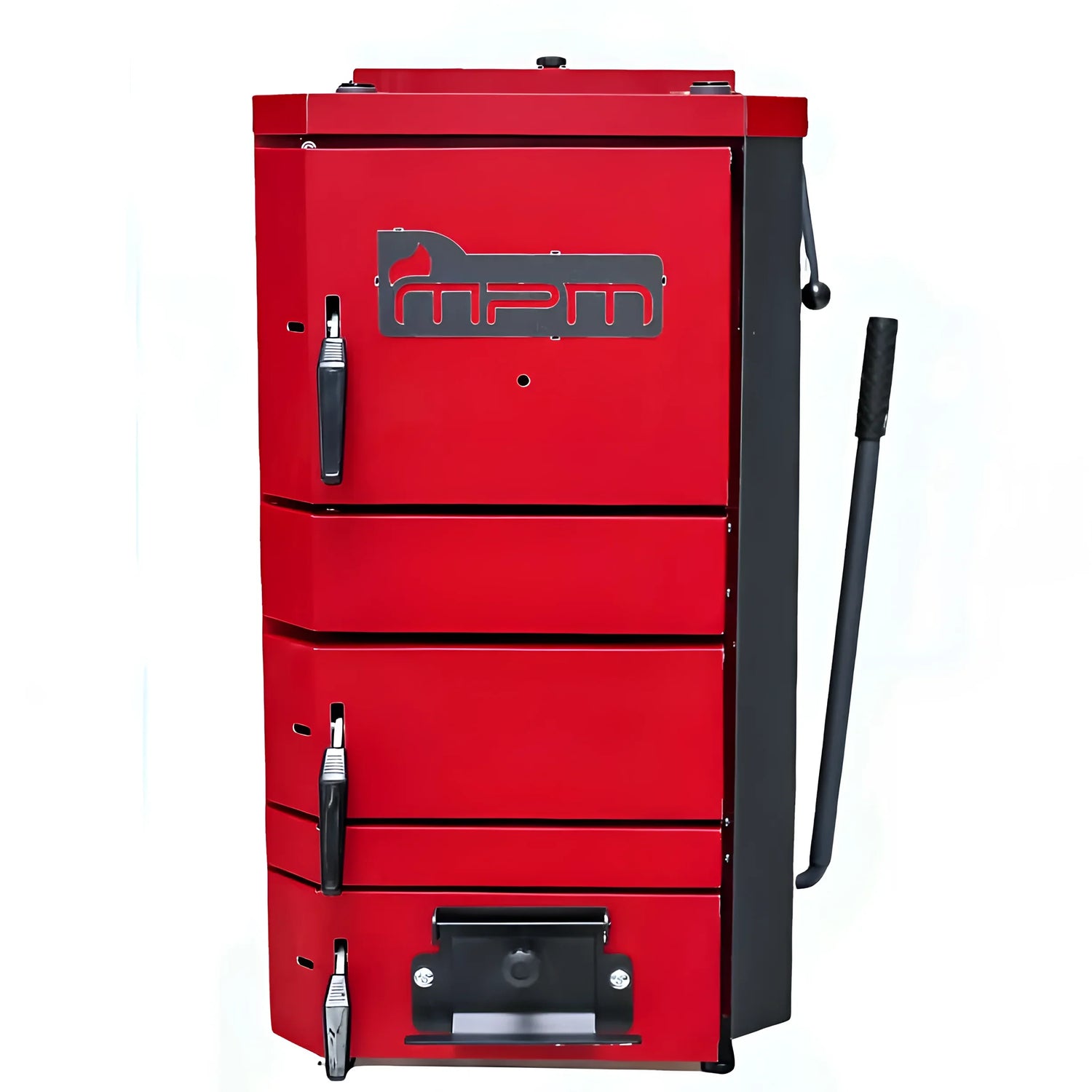

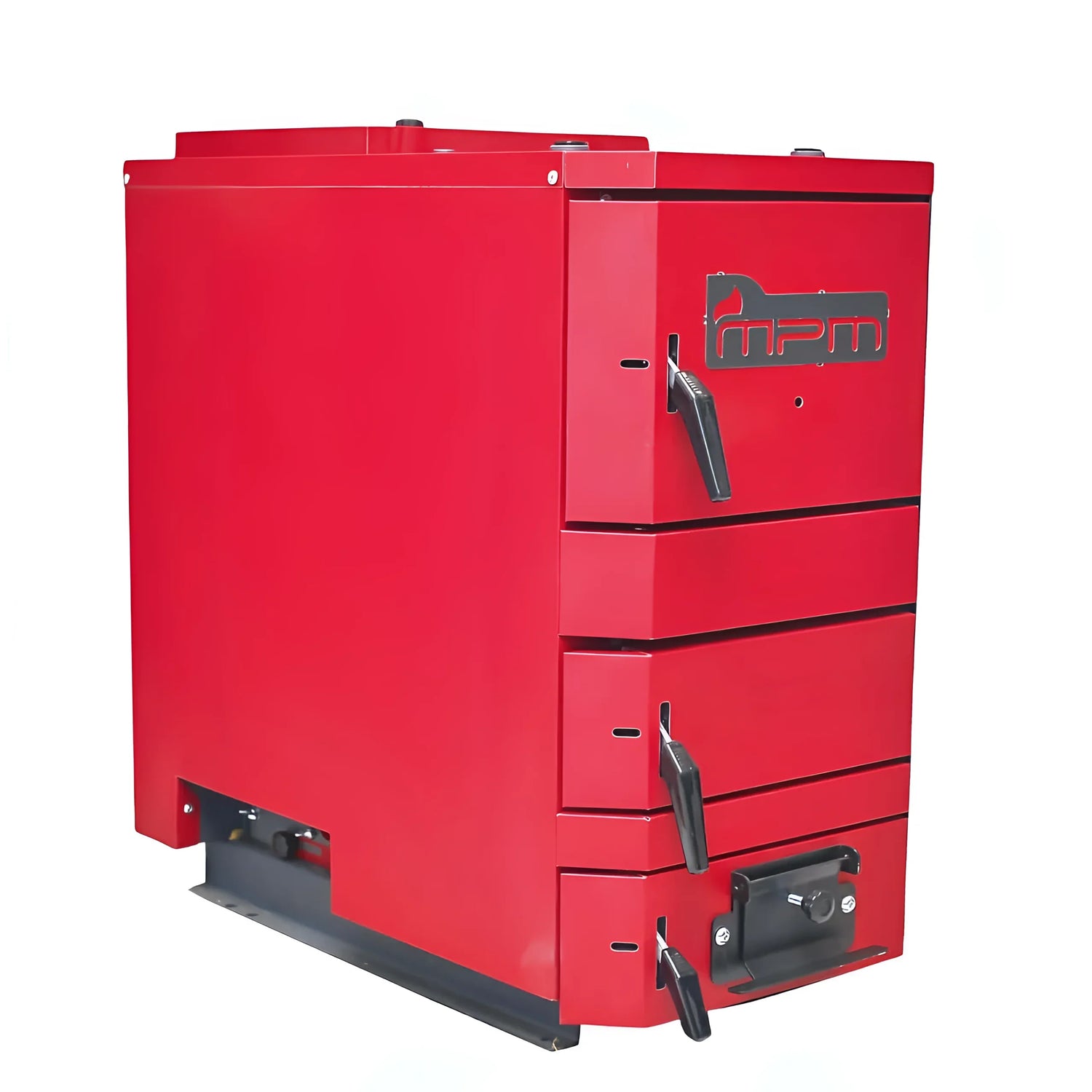

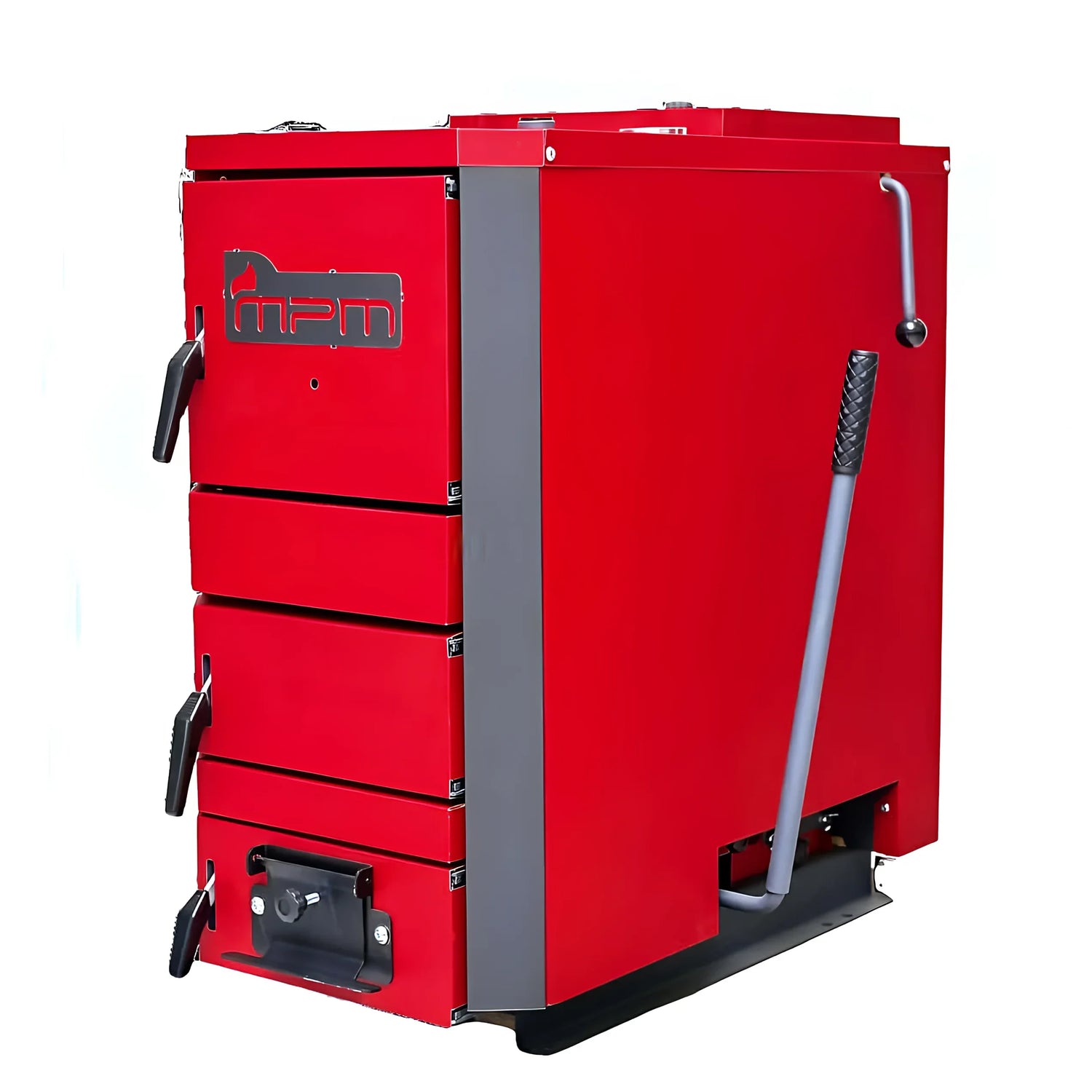

The MPM Wood Plus 10 kW represents the latest generation of modern wood gasification boilers, combining innovative technology with precise and durable manufacturing quality from Poland. This boiler impresses with its high energy efficiency and sophisticated operating concept, making it the ideal choice for the clean and sustainable combustion of solid fuels – especially wood. Its design makes it suitable for both open and closed heating circuits. Especially when used in closed heating circuits, the unit is equipped with additional thermal protection: The integrated DBV-1 valve ensures maximum safety and reliability during the heating process and reliably protects against overheating.

The heart of the system is the sophisticated combustion technology. Thanks to the high-quality ceramic combustion chamber, the wood is burned almost completely. This efficient conversion leads to an exceptionally high energy yield, so you can expect one of the best cost-benefit ratios on the market for wood fuel. Furthermore, this design minimizes emissions and significantly reduces fuel consumption. The optimized combustion also has a positive impact on the environment, as pollutants are reduced and operating costs are lowered. Another advantage: Thanks to the advanced technology, less ash is formed and hardly any stubborn deposits form, significantly reducing maintenance requirements. This means you have a permanently reliable and comfortable heating solution with minimal care.

An innovative highlight of the boiler is the automatic smoke extraction system in the loading chamber. This patented system ensures that hardly any smoke escapes, even when adding wood. This keeps your boiler room clean and free of annoying plumes of smoke at all times, while the combustion process is continuously and optimally supported. This solution allows you to refill fuel safely and conveniently – without interrupting operation or any concerns about safety and cleanliness.

By combining new technologies with a clever design concept and protected patent applications (Nos. P.437844 and P.444656), the MPM Wood Plus 10 kW not only achieves significant fuel savings but also makes a significant contribution to environmental protection. The design meets the strict emission requirements of the 5th combustion stage according to PN-EN 303-5:2021. Furthermore, the boiler carries the coveted Ecodesign certification, which attests to the highest level of sustainability and meets the latest standards for resource-efficient heating. With the MPM Wood wood gasification boiler, you are investing in a heating system that combines compelling cost advantages with modern, environmentally friendly operation – ideal for users who place particular emphasis on efficiency, innovation, and certified safety.

Technical data

• Energy efficiency class: A+
• Boiler class: 5
• Nominal heat output: 10 kW
• Tensile force: 19 Pa
• Prescribed fuel: wood
• Height: 940 mm
• Width: 585 mm
• Depth: 1070 mm
• Flue pipe connection: 178 mm
• Weight: 270.0 kg

Scope of delivery

• Solid fuel boiler MPM Wood Plus 10 kW
• Assembly and operating instructions
