Pellet boiler Nextpell+ with high efficiency and long service life

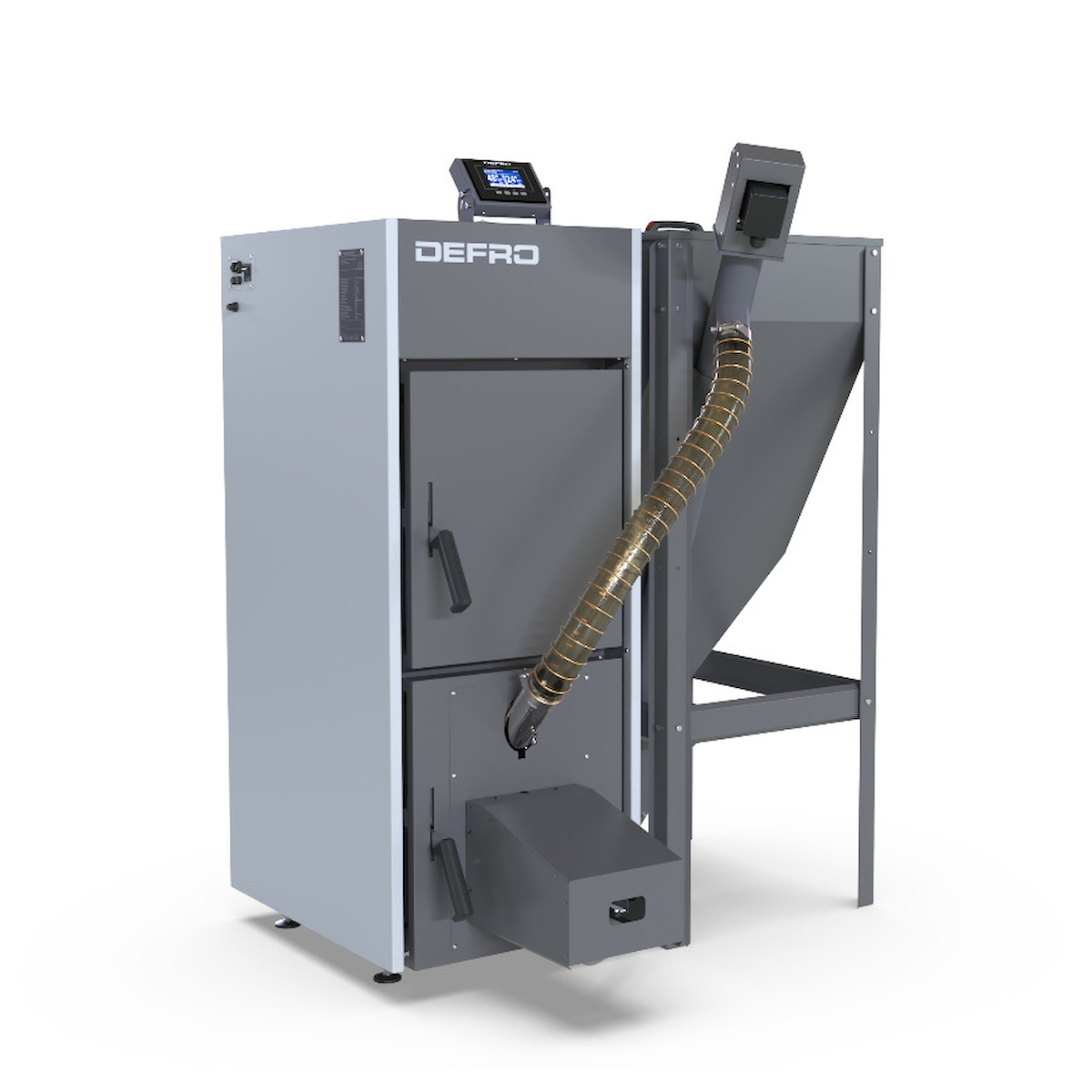

NEXTPELL+ 20 kW pellet boiler – Innovative heating solution for maximum comfort

Modern technology and efficiency

The pellet boiler NEXTPELL+ impresses with its advanced technology, which enables efficient heat generation. With its high efficiency, it ensures environmentally friendly and economical heating of your home.

The automatic control and flexible modulation of the burner output ensure comfortable operation, which makes optimal use of the energy used and helps to reduce operating costs.

Versatile fuel use

Thanks to its versatile fuel use, the NEXTPELL+ pellet boiler can be operated with both Pellets as well as logsThis flexibility makes it an attractive choice for users who want to use different fuels.

The integrated pellet burner with automatic self-cleaning and precise control contribute to smooth and reliable operation – regardless of the fuel used.

High-quality workmanship and modern control

The robust and durable boiler body is made of certified steel, ensuring first-class workmanship and a long service life. The factory-installed control system optimally regulates important components such as three pumps and the heating circuit mixer.

Furthermore, the pellet boiler is designed to be future-proof – expansion options such as an internet module ensure that the heating system can always be adapted to current requirements.

Comprehensive scope of delivery and easy assembly

The scope of delivery includes a pellet hopper with auger conveyor and a pellet burner with automatic cleaning function. The system is complemented by a modern control system including cabling.

Thanks to the detailed installation and operating instructions, even users without in-depth technical knowledge can install the boiler – so you can quickly benefit from the numerous advantages of this boiler.

Robust construction and warranty

The boiler's solid construction and the use of high-quality materials guarantee a long product lifespan. A 5-year warranty is provided on the boiler body, while the electrical system and proper operation are covered for 2 years.

These guarantees offer additional protection and security, making the NEXTPELL+ pellet boiler a reliable investment for users seeking a sustainable and economical heating solution.

Technical data at a glance

With a nominal output of 16 kW and a variable output range of 5.6 to 19.8 kW, the pellet boiler delivers robust heating performance. The impressive efficiency of 91.9% at full load and 90.9% at partial load demonstrates efficient energy use.

The compact boiler weighs 308 kg and measures 1054 x 1133 x 1415 mm (W x D x H) including the pellet hopper, offering a space-saving solution. The 130 mm flue connection also ensures trouble-free operation.

Technical data

• Energy efficiency class A+

• Boiler class 5

• Nominal heat output 20 kW

• Power range 5.9 - 19.8 kW

• Efficiency 91.9%

• Tensile requirement 13 Pa

• Prescribed fuel: wood pellets

• Exhaust gas temperature 132 °C

• Exhaust gas mass flow 14.7 g/s

• Height base 1530 mm/Plus 1415 mm

• Width base 498 mm/Plus 1054 mm

• Depth base 1133mm/Plus 1133mm

• Flue pipe connection 130 mm

• Weight 271.0 kg

Scope of delivery

• Pellet container with screw conveyor
• Pellet burner with automatic conveying
• System control including cabling
• Cleaning tool
• Assembly and operating instructions

Download

• Operating instructions

• Product data sheet
